Design Support

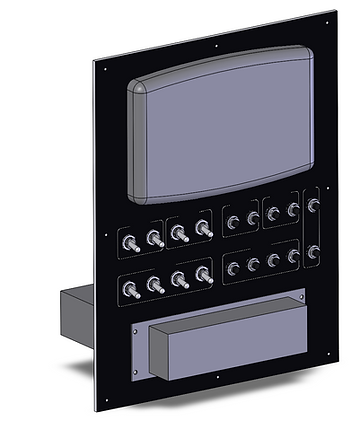

Hardgrave Fabrication Group supports concept development through disciplined mechanical design and clear documentation. We develop practical, buildable solutions for welded structures, machined components, and full assemblies—whether refining an existing design or working from a clean-sheet concept.

Designs are developed with fabrication, inspection, and procurement in mind from the outset. Drawings are produced in accordance with ASME Y14 standards and include the information required to execute work reliably, including fabrication dimensions, assembly details, and welding information proven to yield consistant results.

HFG-designed equipment is in service across a range of industries, including Fire/Rescue, Oil and Gas, and Marine.

​​

​
